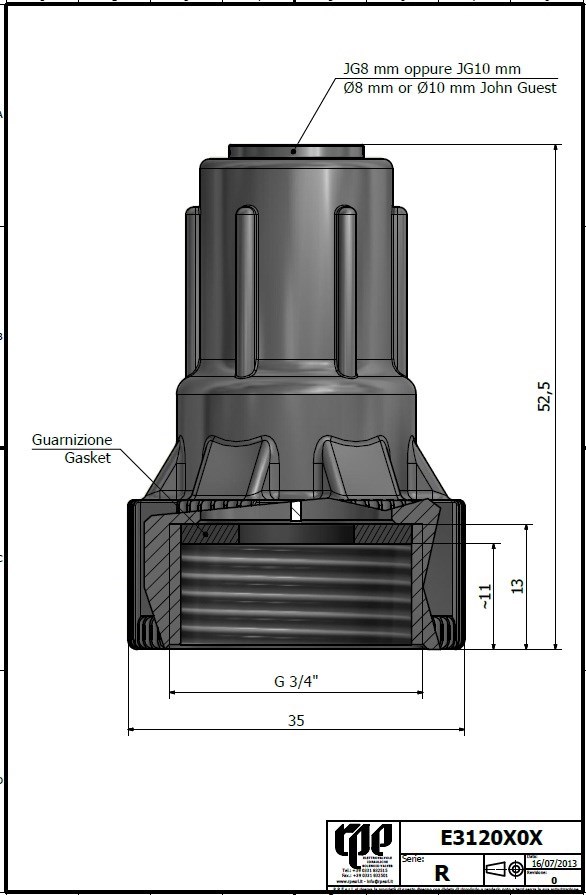

Beschläge 3/4 F
-
Installation
- In jeder Position
-
Anwendungen
- Sanitärarmaturen
- Panzer
- Haushaltsgeräte
-
Physikalische Spezifikationen
- Körper PA 66 - 30 GF
-
Arbeitsspezifikationen
- Arbeitsdruck 0 - 10 bar
- Zimmertemperatur max Tu 60°C
- Flüssigkeitstemperatur max Tu 90°C
- Öffnung DN 8 mm
- Durchflussrichtung Bidirectional
-
Hydraulikanschlüsse
-
Inlet
G 3/4" Female
JG 8 mm
JG 10 mm -
Outlet
G 3/4" Female
JG 8 mm
JG 10 mm
Datenblätter
| Model | IN | OUT | Color | Filter | Gasket | Check valve with inlet toward thread | Check valve with inlet toward JG |
| E3120100 | 3/4" F | JG 8 mm | Black | ||||
| E3120101 | 3/4" F | JG 8 mm | Black | ||||
| E3120102 | 3/4" F | JG 8 mm | White | ||||
| E3120103 | 3/4" F | JG 8 mm | White | ||||
| E3120104 | 3/4" F | JG 8 mm | White | ||||
| E3120105 | 3/4" F | JG 8 mm | White | ||||
| E3120200 | 3/4" F | JG 10 mm | Black | ||||
| E3120201 | 3/4" F | JG 10 mm | Black | ||||
| E3120202 | 3/4" F | JG 10 mm | White | ||||
| E3120203 | 3/4" F | JG 10 mm | White | ||||
| E312030A | 3/4" F | JG 1/4 | Black | ||||
| E3120302 | 3/4" F | JG 1/4 | White |
