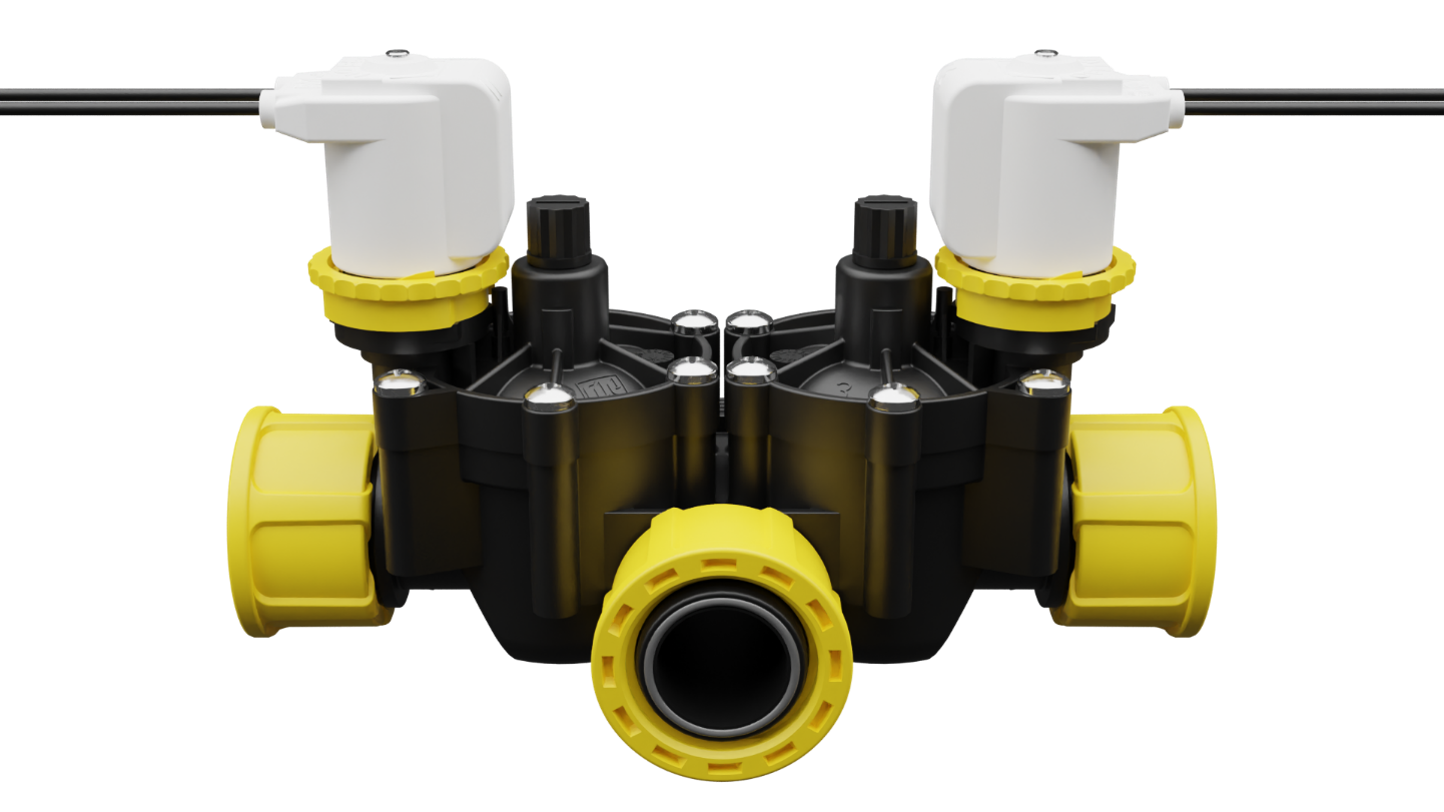

6th Series Connect'eedy Plus
-
Working Characteristics
- Working pressure 0,5-10 bar
- Fluid temperature Max 60°C
- Body PA 30% FG
- Diaphragm NBR "Buna N"
- Manual opening Bayonet
- Assembly Modular
-
Physical Characteristics
- Valve body PA 66 30% FG
- Diaphragm NBR (Buna)
- Core Stainless Steel
- Spring Stainless Steel
- Assembly With screws, serviceable
-
Electrical Connections
- Electric. connect 1 Unipolar cables 600 mm
- Electric. connect 2 Bipolar cables max 5000 mm
- Electric. connect 3 Male Faston 6,3x0,8 mm
