900 Series
-
Installation
- In any position
-
Applications
- Water and sanitary installations
- Floorwashing machines
- High-pressure water jet machines
- Metering devices
- Steam boilers
- Ice machines
- Sanitization systems
-
Physical characteristic
- Valve body: PPO - 20% GF
- Diaphragm: NBR
- Core: Stainless steel
- Coils: F class (155°)
- Assembly: Bayonet
-
Working specifications
- Working pressure: 0-0,2 bar
- Room temperature Tu 60° C
- Fluid temperature Tm 90° C - ED 100%
- Orifice: DN 3 mm
- Control: NC - Normally closed
- Fluid direction: Unidirectional
-
Electrical Connections
- Faston 6,3x0,8 mm
- Bipolar wires max 2100 mm
-
Hydraulic connections
- Inlet Faston maschio 6,3 x0,8 mm
- Outlet 1/8'' mal
-
Solenoids
- 24 V AC 50/60 HZ
- 230 V AC 50/60 HZ
-
MOQ
- mod. 900.000 200 pcs
- mod. 900.020 200 pcs
- mod. 900.040 200 pcs
- mod. 900.010 200 pcs

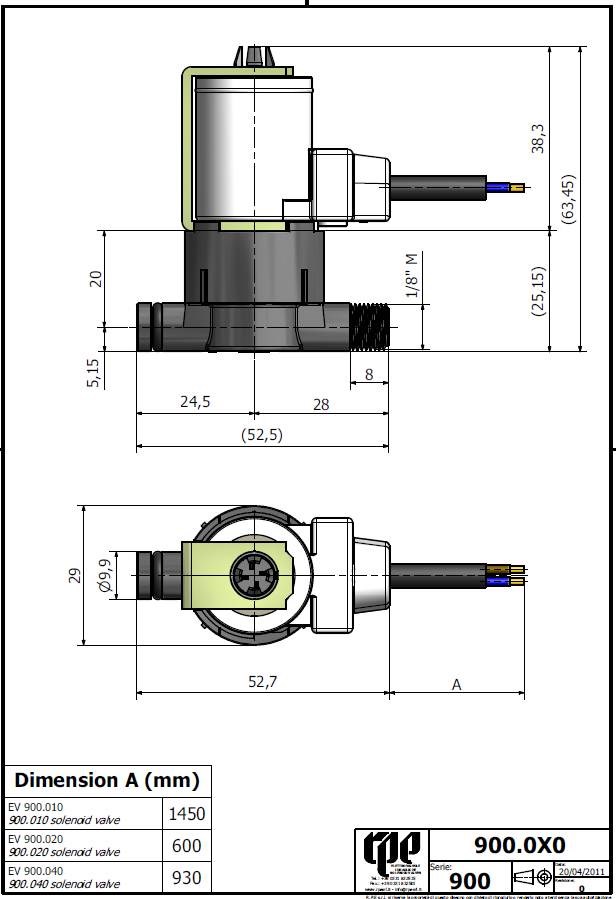

Datasheets
| Model | IN | OUT | Orifice | Electrical connection |
| 900.000 A24AC | M custom | 1/8" M | 3 mm | Faston |
| 900.020 A24AC | M custom | 1/8" M | 3 mm | wire 600 mm |
| 900.040 A24AC | M custom | 1/8" M | 3 mm | wire 930 mm |
| 900.010 A24AC | M custom | 1/8" M | 3 mm | wire 1450 mm |
