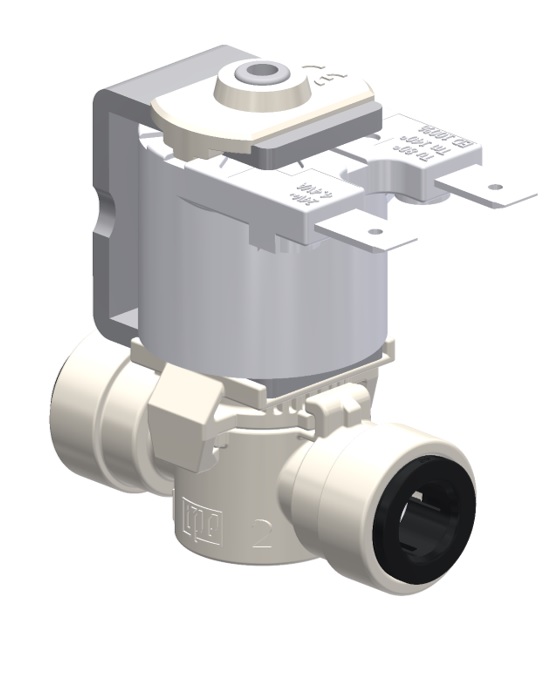

TC SERIES
-
Installations
- the valve can be installed in any position with no risk for its operation
- easy to inspect
-
Applications
- water dispenser
- wherever there is need for water control
-
Physical Characteristics
- valve body PA66 30%GF
- gaskets EPDM -LSR
- core stailness steel
- spring stainless steel
- Assembly bayonet
-
Working Characteristics
- working pressure 0-18 bar 0-15 bar 0-11 bar
- room temperature 0-75 °C
- fluid temperature 0-75 °C
- flow direction unidirectional
- nominal diameter Ø1.5 - Ø2.0 - Ø2.5
- Elet. Pilot / Control NC direct opening
-
Hydraulic Connections
- inlet Ø6 mm JG quick fitting
- Ø8 mm JG quick fitting
- oulet Ø6 mm JG quick fitting
- Ø8 mm JG quick fitting
-
Electrical Connections
- see datasheet
Datasheet
| MODEL | IN | OUT | DIAMETER |
| TC - Ø6 MM | Ø6 MM | Ø6 MM | Ø1,5 - Ø2,0 - Ø2,5 |
| TC - Ø8 MM | Ø8 MM | Ø8 MM | Ø1,5 - Ø2,0 - Ø2,5 |
